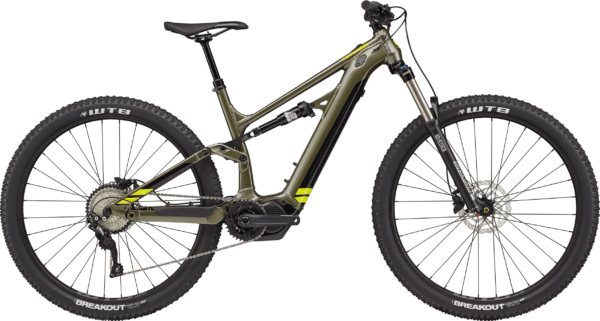

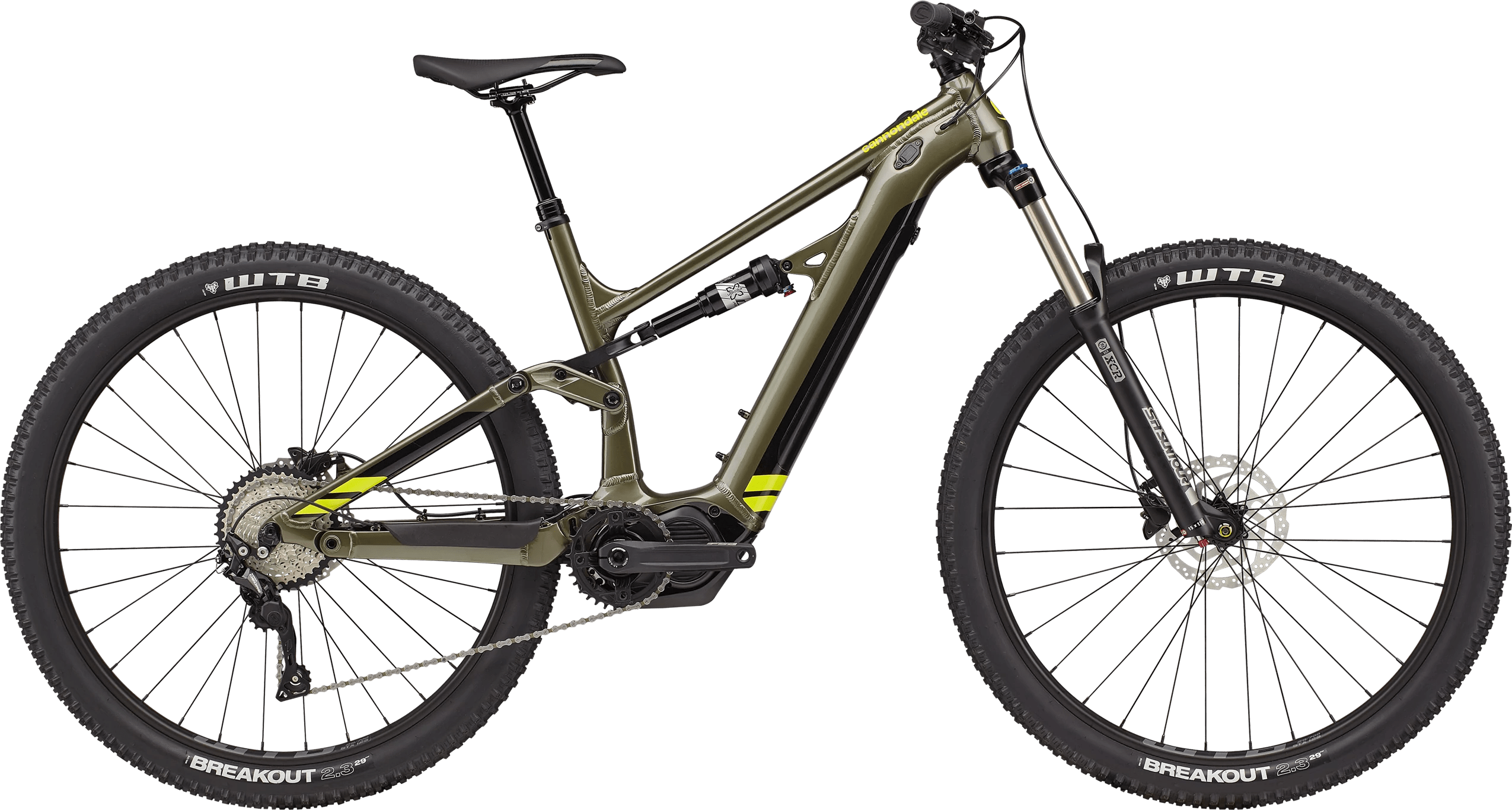

Cannondale Moterra Neo 5

DETAILS

• Plattform

  Moterra Neo

• Modell

  Moterra Neo 5

• Modellnummer

  C69201M

RAHMENSET

• Rahmen

  150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube

• Gabel

  SR Suntour XCR LO Boost 29, 140mm travel, 15mm thru axle, tapered alloy steerer

• Steuersatz

  Integrated Sealed Bearing, Tapered

• Rear Shock

  X-Fusion 02 Pro RL, Rebound and Lockout

E-SYSTEM

• Motor

  Shimano STEPS DU-E7000 250W

• Batterie

  Shimano STEPS BT-E8035, 504Wh

• Ladegerät

  Shimano Battery Charger 2A

• Display

  Shimano SC-E7000, Bluetooth enabled

ANTRIEB

• Schaltwerk

  Shimano Deore M6000

• Schalthebel

  Shimano Deore M4100, 10-speed

• Kette

  Shimano Deore, 10-speed

• Kurbel

  FSA Shimano E-Bike, 165mm, FSA Megatooth, 34T

• Kassette

  Shimano HG500, 11-42, 10-speed

BREMSEN

• Bremsen

  Shimano MT200 hydraulic disc, 180/180mm RT10 rotors

• Bremshebel

  Shimano MT200 hydraulic disc

LAUFRÄDER

• Felgen

  WTB STX i25 TCS, 32h, tubeless ready

• Vorderradnabe

  Shimano MT400, 15x110mm thru-axle

• Hinterradnabe

  Shimano MT400 12×148

• Speichen

  Stainless Steel, 14g

• Reifen

  WTB Breakout, 29 x 2.3″, DNA Compound, Comp Level, 30TPI

• Reifengröße

  2.3

• Reifendimension

  29

• Vorderreifen

  WTB Breakout, 29 x 2.3″, DNA Compound, Comp Level, 30TPI

• Hinterreifen

  WTB Breakout, 29 x 2.3″, DNA Compound, Comp Level, 30TPI

KOMPONENTEN

• Lenker

  Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm

• Vorbau

  3D Forged 6061 Alloy, 1-1/8″, 31.8, 7°

• Griffe

  Cannondale Locking Grips

• Sattel

  Cannondale Ergo XC

• Sattelstütze

  TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL)

EXTRA

• Extra 1
